Pince de selle pour tuyau DI

Numéro de produit:

DN60-DN300

La fonction principale de ce produit est d'ouvrir un tuyau de branche ou d'installer temporairement le robinet ou le compteur d'eau dans n'importe quelle partie du pipeline temporairement après l'achèvement de l'installation de l'ensemble du pipeline et déjà en cours d'exécution.

La conception spéciale est autorisée, bienvenue pour nous contacter.

Discuter maintenant

Pince de selle pour tuyau DI

Numéro de produit:

DN60-DN300

La conception spéciale est autorisée, bienvenue pour nous contacter.

Discuter maintenant

N ° de pièce	Nom de pièce	Matériel	Standard
1	Corps	GGG50	EN1563
2	Bague en caoutchouc	EPDM / SBR / NBR	ISO4633
3	Bride	GGG50	EN1563
4	Boulons et écrous	Acier au carbone 4.8 / 8.8, SS, dacromet	ISO898
5	Couche de finition	Époxy de liaison fusion etc.	BS EN14901

Briefs et fonctionnalités
1	Convient aux tuyaux DI.
2	Pression de travail PN10 / PN16.
3	Température maximale -10 ° C à + 70 ° C.
4	Convient pour l'eau potable (WRA approuvée), l'eau recyclée et les eaux usées.
5	L'écart d'angle total est de +/- 3 degrés.

Norme de conformité
Forage des bride	EN1092-2, EN1092-1, ANSI
Revêtement	EN30677
Test	EN12266-1

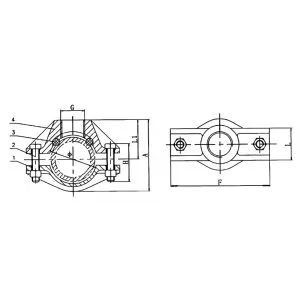

Article	Spécification (mm)
	∅	F	G	L	UN	L1	H
60~3/4”	60	155	3/4”	80	118	65	M12 × 90
60~1”			1”
60~1 1/4”			1 1/4”
60~1 1/2”			1 1/2”
80~1”	80	175	1”	80	138.5	75	M12 × 90
80~1 1/4”			1 1/4”
80~1 1/2”			1 1/2”
100~1”	100	195	1”	92	165	91	M12 × 90
100~1 1/4”			1 1/4”
100~1 1/2”			1 1/2 ”
100~2”			2”
125~1”	125	220	1”	92	193	104	M12 × 90
125~1 1/4”			1 1/4”
125~1 1/2”			1 1/2”
125~2”			2”
150~1”	150	245	1”	92	209	107	M12 × 100
150~1 1/4”			1 1/4”
150~1 1/2”			1 1/2”
150~2”			2”
175~1”	175	260	1”	92	243.5	129	M12 × 130
175~1 1/4”			1 1/4”
175~1 1/2”			1 1/2”
175~2”			2”
200~1”	200	276	1”	122	276	143	M12 × 140
200~1 1/4”			1 1/4”
200~1 1/2”			1 1/2”
200~2”			2”
250~1”	250	330	1”	122	333	174	M12 × 160
250~1 1/4”			1 1/4”
250~1 1/2”			1 1/2”
250~2”			2”
300~1”	300	380	1”	122	385	200	M12 × 180
300~1 1/4”			1 1/4”
300~1 1/2”			1 1/2”
300~2”			2”

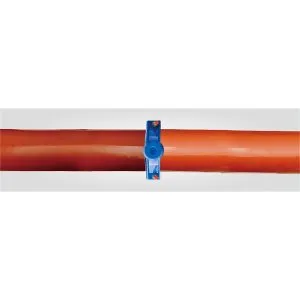

1.This product is specially designed for connecting DI pipes. The connect range is from DN60-DN300. If the customer has special requirements we can design and manufactured. 2.The simplicity and versatility of this product makes the product very easy to install and the entire line can be installed in a running pipeline. It will avoid the shut down the whole pipeline line during saddles installation,which can bring great convenience to customers. 3.Product design and manufacturing in accordance with ISO9001: 2008 system. we use ductile iron material as the main body of product, surface corrosion materials is authenticated by WRAS certification. making it suitable for drinking water. 4.We provide gaskets of EPDM, NBR, and SBR, bolts and nuts of carbon steel and stainless steel, etc., long-term anti-rust protection. For this product we provide excellent protection from transportation, warehousing, anti-corrosion at site.

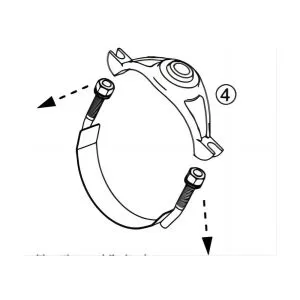

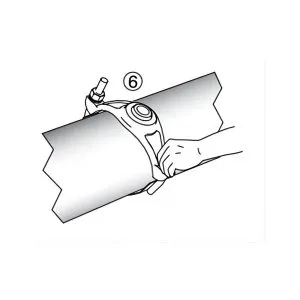

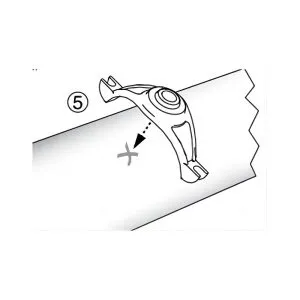

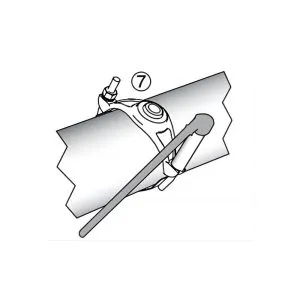

1.Check the saddle package, if any accessories was lost during transport. 2.Check the diameter and casting marks of the pipe and check the type of model of the saddle, to make sure you use the right products. 3.Thoroughly clean the pipe surface that will use the pipe saddle, brush suitable gasket lubricant for roughened pipes to ensure that the product is well sealed. 4.Loosen the saddle bolt to separate the two part of products. 5.Positioning saddle on the pipe, make sure thread outlet is in the correct position. 6.The bore holes of saddle’s two parts should be aligned to ensure the gasket is parallel to the pipes surface. 7.Tighten the bolt with a wrench as required. The bolt is evenly exchanged with a torque of 15-20 pounds / feet each time.
