Universal Saddle Flange Tee vs Tapping Sleeve | Key Differences

Why Choosing the Right Branch Connection Fitting Matters

In pipeline projects, adding a branch to an existing pipe often comes up. Think about a live water main where you need to connect a valve, meter, or side line without shutting down the whole system. That’s a common engineering challenge. Options like tapping saddles, universal saddle flange tees, and tapping sleeves pop up frequently.

Pick the wrong one, and problems follow. Leaks might spring up, pressure could drop, or the job takes longer than planned. Costs can balloon too. So, how to choose between saddle tee and tapping sleeve?

What Is a Universal Saddle Flange Tee?

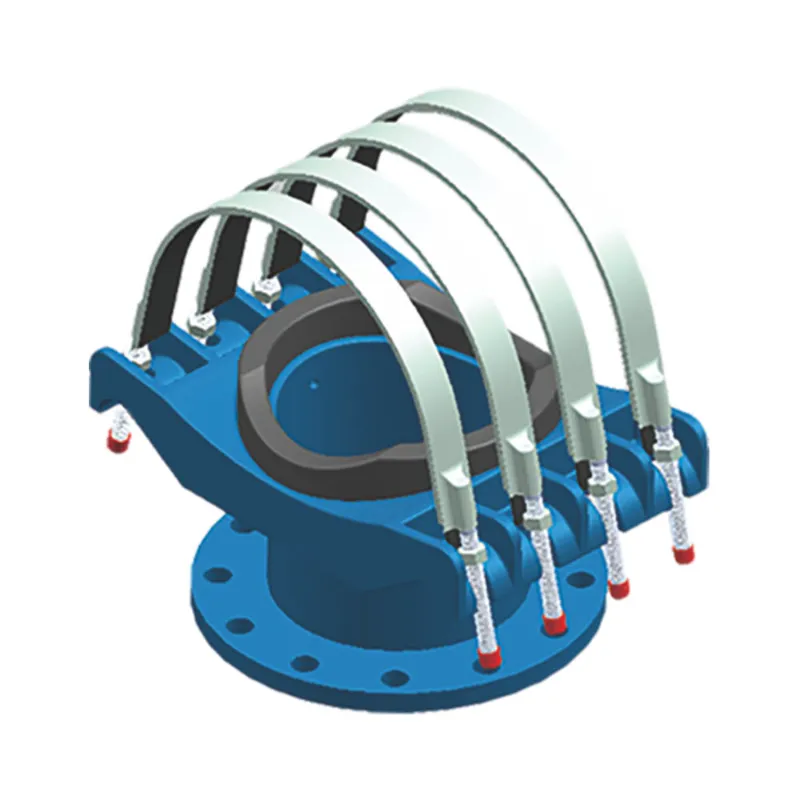

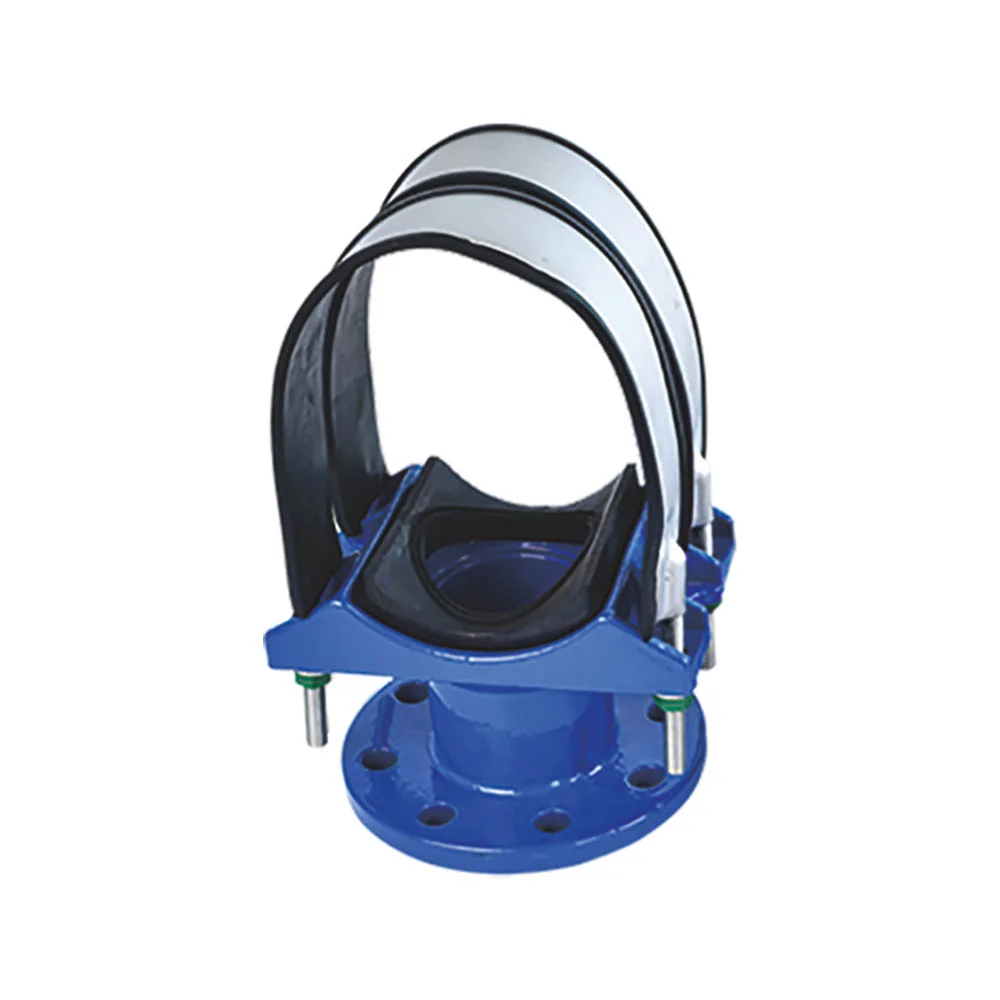

A universal saddle flange tee clamps onto the pipe. It wraps partially around and has a flanged outlet for hooking up valves, meters, or branch flanges.

The “universal” part means it works on various materials. Ductile iron, PE, PVC, steel – all handled through gaskets, curved designs, and bolt setups. Flanged saddle clamp like this simplifies things.

Small to medium branch sizes, say DN50, DN80, or DN100. They show up in mid-low pressure water supply networks, irrigation setups, or industrial utilities. Mechanical branch connection makes sense here.

Universal saddle flange tees from manufacturers like Conflex are designed to work across ductile iron, PVC, PE and steel pipelines, reducing the number of different fittings needed in stock.

What Is a Tapping Sleeve?

Tapping sleeve definition points to a full circumferential wrap around the pipe. It usually comes with a flanged outlet for hot tapping big branches.

These are longer and heavier, often made from stainless steel or ductile iron. Full-encirclement tapping sleeve handles tougher jobs. Hot tap sleeve on water main is standard for those.

Installation can take more time, maybe need special gear or even welding.

Design Differences – Partial vs Full Encirclement

Egar qisish vs full encirclement sleeve boils down to coverage.

Universal Saddle Flange Tee Design

This one covers just part of the pipe’s circumference. Wide gaskets, curved saddles, and tensioned bolts seal it up. Lighter weight makes handling easy. Partial encirclement branch fittings like this install quick.

Tapping Sleeve Design

Full wrap means the gasket covers the entire contact area. It applies even hoop stress to the pipe wall. Better for high pressure, thin walls, or plastic pipes. Difference between partial-encirclement saddle and full-encirclement tapping sleeve? The sleeve’s sturdier but bulkier.

Ever notice how partial designs flex a bit more? That can be a plus in some setups, though not always.

Pressure Rating and Size Range – When Each Option Makes Sense

Industry practices, like AWWA recommendations, guide choices.

Tapping sleeve pressure rating often goes higher. Service saddle vs tapping sleeve outlet size matters too. Saddles or tees suit low to mid pressure and small branches, maybe up to 2″ outlets.

Tapping sleeves handle larger or high-pressure spots, over 2″ or a big chunk of the main’s diameter.

What size branch requires a tapping sleeve instead of a saddle tee? On a DN300 main tapping a DN50 meter branch, saddle flange tee usually wins. But for DN600 main to DN300 branch, tapping sleeve plus tap valve is the way.

Pressure limits for saddle clamps on water mains vary. Check specs, but saddles cap out sooner. High stakes? Go sleeve.

Installation Time, Tools and Skill Level

Speed counts in the field.

Installing a Universal Saddle Flange Tee

Clean the pipe wall, position it, tighten bolts diagonally. Then drill or hot tap the hole. Install saddle flange tee with basic wrenches and a drill. Fits tight shutdown windows or emergencies.

Installing a Tapping Sleeve

Heavier and longer, so tapping sleeve installation time stretches out. Might need lifting gear, torque tools, or welding. Planned jobs suit it better.

How long does it take to install a tapping sleeve vs a saddle clamp? Saddles might wrap up in under an hour; sleeves could double that or more.

Contractors often prefer universal saddle flange tees from Qo'shin for smaller branches when shutdown time is limited and installation speed is critical.

Skill-wise, saddles need less expertise. Sleeves demand precision to avoid slips.

Pipe Materials – The “Universal” Advantage

Pipes differ: ductile iron’s rigid, PVC flexible, HDPE tough on tolerances, steel sturdy.

Universal saddle clamp for DI PVC HDPE shines here. Curved bodies, range designs, special gaskets cover multiples. Multi-material branch connection fitting cuts down on variety needs.

Using the same saddle flange tee on ductile iron, PVC and HDPE pipes? That’s the draw for utilities. One series handles diverse sites. Tapping sleeves? Often tailored to one material, less versatile but stronger where it counts.

Stocking headaches ease with universals. Imagine juggling sleeves for every pipe type – not fun.

Cost, Inventory and Lifecycle Considerations

Upfront, universal saddle flange tees might cost a tad more than basic saddles. But universality means fewer SKUs in stock. Pipeline branch fitting inventory management improves.

Tapping sleeves hit harder on price and install costs. Reserve them for must-have cases; they’re not everyday items. Cost of tapping sleeve vs saddle tee? Saddles save on labor from quick fits. Less downtime means lower lost production too.

Over the lifecycle, fast installs cut manpower bills. Full-wrap tapping sleeves hold up in high-risk, high-pressure spots though. How universal saddle flange tees reduce inventory for water utilities? By covering more with less, simple as that.

Practical Selection Guide – Universal Saddle Flange Tee or Tapping Sleeve?

Choose between saddle tee and tapping sleeve with this branch connection selection guide.

• Branch Size: ≤2″ – lean saddle tee; 2–4″ – check pressure; >4″ – tapping sleeve often.
• System Pressure: Low-mid – saddle; high – sleeve.
• Pipe Material: DI, steel, PVC, HDPE – universal saddle if compatible.
• Downtime: Short or none – saddle; planned long – either.

Typical picks: Small branch + mid-low pressure + mixed materials → universal saddle flange tee. Big branch + high pressure/key main → tapping sleeve + tap valve.

Which is better for my project universal saddle flange tee or tapping sleeve? Run through the list.

In practice, many engineers use tapping sleeves only where large, high-pressure branches are needed and rely on universal saddle flange tees from Conflex for most small and medium-size branch connections.

Using Both Fittings the Right Way

Universal saddle flange tee vs tapping sleeve? No absolute winner. The tee excels for quick, multi-material, small-medium branches with flange interfaces. Tapping sleeve steps in for large, high-pressure needs – more robust, though heavier to handle.

Difference between saddle tap and tapping sleeve for pipeline projects boils down to matching pipe size, pressure, material, and site conditions. Tapping saddle vs tapping sleeve debates often overlook that blend. Use both smart; systems last longer.

How to choose between saddle tee and tapping sleeve? Assess the job. Get it spot on, and leaks stay away.

FAQ

Q: What is the difference between a universal saddle flange tee and a tapping sleeve?

A universal saddle flange tee provides a flanged outlet using a partial-encirclement design, while a tapping sleeve fully surrounds the pipe and is used for larger or higher-pressure branch connections.

Q: When should I use a universal saddle flange tee?

Use a universal saddle flange tee for small to medium branch lines, multi-material pipelines (DI, PVC, PE, steel), quick installations, and projects with limited shutdown time.

Q: When is a tapping sleeve the better option?

A tapping sleeve is preferred for large-diameter outlets, high-pressure applications, and critical water mains where full pipe reinforcement and strong sealing are required.

Q: Are universal saddle flange tees suitable for PVC, HDPE, and ductile iron pipes?

Yes. Their “universal” design, sealing gaskets, and contoured body allow them to fit multiple pipe materials, making them ideal for water utilities and contractors who need flexible inventory.

Q: Which option is faster to install: saddle flange tee or tapping sleeve?

A universal saddle flange tee installs faster and requires fewer tools, while a tapping sleeve takes longer due to its full-length body and higher-strength bolting requirements.
