How to Handle Pipe Joint Misalignment in a Mining Water Pipeline

A leaking pipe joint in a mining water line should not be treated like ordinary pipe wall damage.

That sounds direct, but it matters. In a mining area near Tarkwa, Ghana, the pipeline problem may look simple from the road: wet soil around a buried water line, pressure dropping near the pump station, and a maintenance team trying to keep production water moving. The first reaction is often to ask for a repair clamp.

Maybe that is right. Maybe not.

If the leakage comes from a pipe body crack, a repair clamp makes sense. If the leakage sits at a pipe end, near a flange, or beside a valve chamber, the better answer may be a coupling, a kuondoa pamoja, or a flange adaptor. The product choice follows the failure point. Not the other way around.

Why Do Pipe Joints Leak in Mining Water Pipelines?

Mining water pipelines work in rougher conditions than many municipal lines. The pipe may run along haul roads, across uneven ground, or close to temporary drainage channels. Heavy trucks pass nearby. Pump stations start and stop. During the rainy season, the ground softens. During dry months, exposed sections heat up and cool down every day.

A joint that looked acceptable during installation can begin to move. Not a dramatic movement. Just a few millimeters. Enough to stress the gasket. Enough to open a small leak.

The Problem Is Often Movement, Not Only Sealing

This is where many repair decisions go wrong.

A leaking joint is not always caused by a poor gasket. The pipe ends may no longer be aligned. The support under one side may have dropped. The pipe may be pulling slightly away from a valve or pump connection. In that case, tightening bolts again may only buy a little time.

A good site check should ask several hard questions. Is the pipe end still round? Is there axial movement? Is the leakage coming from the joint line or from the pipe wall? Is the valve section difficult to remove? Is there enough space to install the product without forcing the pipe?

These are not paperwork questions. They decide whether the repair holds.

What Should Be Checked Before Choosing a Pipe Connection Product?

Catalog size alone is not enough. DN size helps, but the actual outside diameter matters more during repair. Old pipes, coated pipes, and pipes from different suppliers do not always behave exactly as expected.

The site team should clean the exposed pipe surface, measure the outside diameter, check the pipe material, confirm pressure, and look at the available installation space. A narrow trench changes everything. A valve chamber with no dismantling allowance changes even more.

Is the Leakage on the Pipe Body, Pipe End, or Equipment Section?

If the leak is on the straight pipe body, a matengenezo clamp is usually the product to evaluate.

If the leak is between two pipe ends, a coupling is more relevant.

If the problem is around a valve, pump, flow meter, or flanged equipment, the discussion should move toward a dismantling joint or flange adaptor.

This distinction seems basic. On site, under pressure, it is often skipped.

Which Product Fits This Mining Pipeline Problem?

The practical repair choice should match the real function needed: sealing damage, connecting pipe ends, or creating future maintenance space.

Coupling for Pipe End Connection

A kuunganisha is useful when two pipe ends need to be connected after cutting out a damaged section, or when a joint area needs a more suitable connection.

In mining water pipelines, a coupling can reduce welding work and help deal with slight installation differences. The key is to confirm pipe outside diameter, working pressure, and allowable deflection. A coupling should not be selected only because “the pipe is leaking.” It should be selected because the pipe ends need proper connection.

Dismantling Joint for Valve and Pump Maintenance

Near pump stations and valve chambers, the main issue is often not today’s leak. It is tomorrow’s maintenance.

A dismantling joint gives adjustable space for installing or removing valves, pumps, and other flanged equipment. Without that space, maintenance workers may have to force the pipe, cut bolts, or loosen nearby sections just to remove one valve.

That is not efficient. It also increases the chance of another leak after reassembly.

For mining sites where shutdown time is expensive, a dismantling joint is not just a connection part. It is maintenance planning built into the pipeline.

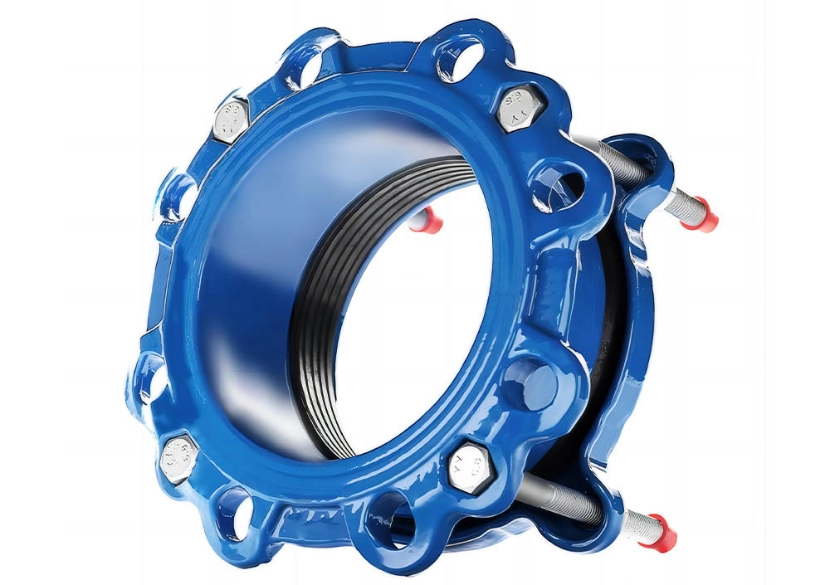

Flange Adaptor for Pipe-to-Flange Connection

When a plain-end pipe needs to connect with flanged equipment, a Adapta ya Flange is often the cleaner choice.

It helps connect the pipe to a valve, pump, or other flange unit without turning the whole repair into a welding job. The important checks are pipe material, outside diameter, flange standard, pressure rating, and bolt alignment.

A flange adaptor does not replace a coupling. It solves a different connection problem.

What Result Should the Buyer Expect?

The leaking joint stops losing water. The valve section becomes easier to maintain. The site avoids unnecessary pipe replacement. The repair team spends less time cutting, welding, and adjusting in a narrow trench.

More importantly, the next maintenance job becomes less painful.

For a mining water pipeline in a place like Tarkwa, that matters. Dust, rain, vibration, and pressure changes will not disappear. The repair product has to accept that reality. A coupling, dismantling joint, or flange adaptor is useful only when it is chosen according to pipe movement, connection type, pressure, and site access.

If you are looking for suitable dismantling joints or flange adapters for mine water pipelines, please Wasiliana nasi. Our team can help you assess the connection status and recommend suitable solutions for your maintenance projects.

Maswali ya kawaida

Q1: Why do mining water pipeline joints leak?

They often leak because of ground movement, pump pressure changes, vibration, pipe misalignment, aging gaskets, or poor support near joints.

Q2: When should a coupling be used?

A coupling should be used when two pipe ends need to be connected or reconnected after repair, cutting, or joint failure.

Q3: When is a dismantling joint needed?

A dismantling joint is useful near valves, pumps, meters, and flanged equipment where future removal and maintenance space are needed.

Q4: Is a flange adaptor the same as a coupling?

No. A flange adaptor connects a plain-end pipe to flanged equipment. A coupling connects two pipe ends.

Q5: What information should buyers provide before selection?

Pipe material, outside diameter, working pressure, flange standard, leakage position, installation space, and site photos are usually needed.
