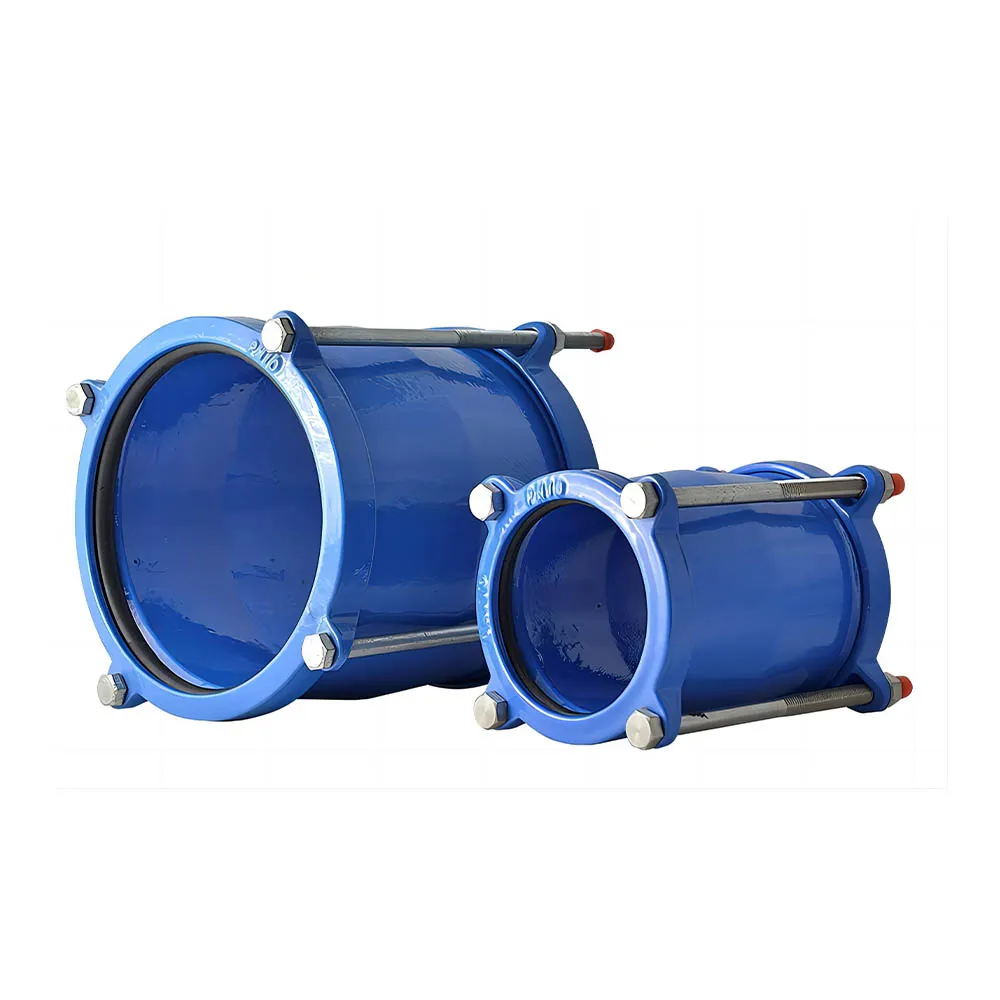

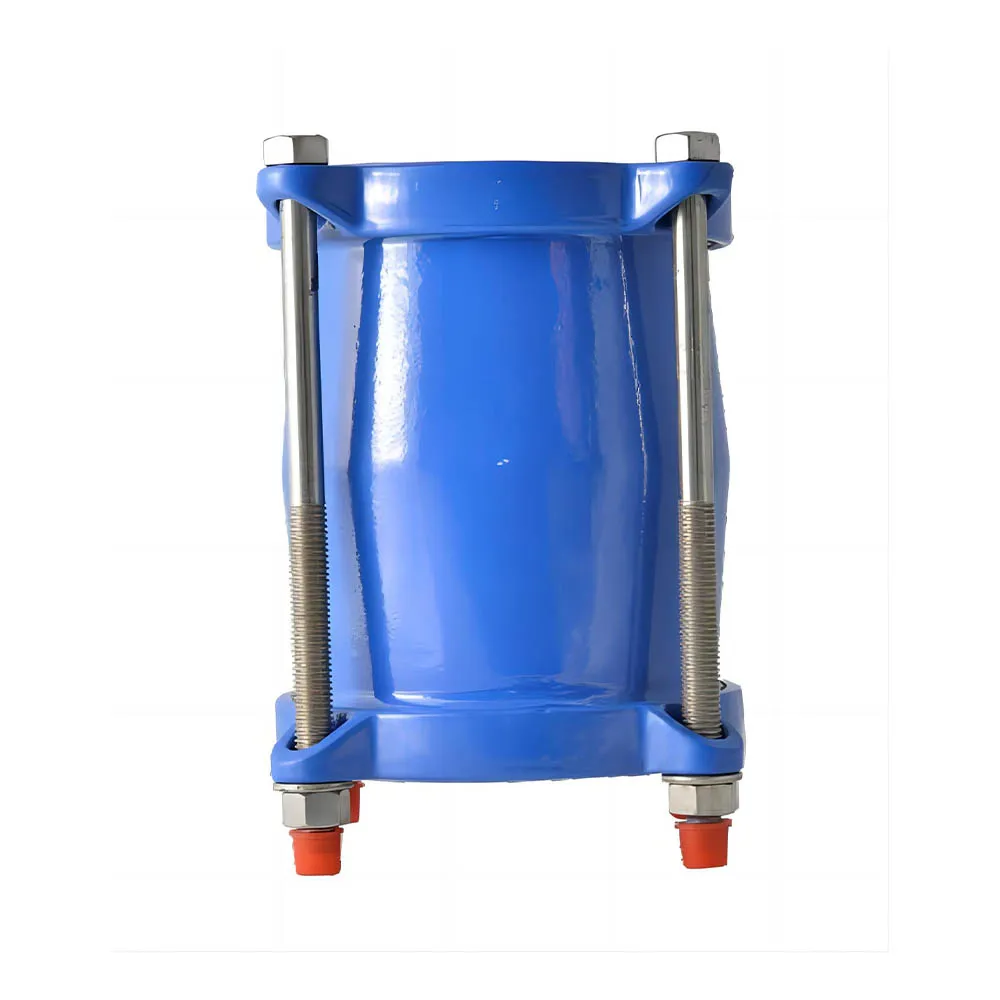

Universal coupling is suitable for PVC pipeline, both end is socket. We use a new mechanical coupling technology to save the installation time. Install easily and remove conveniently.
Special design is allowable, welcome to contact us.
Universal coupling is suitable for PVC pipeline, both end is socket. We use a new mechanical coupling technology to save the installation time. Install easily and remove conveniently.
Special design is allowable, welcome to contact us.

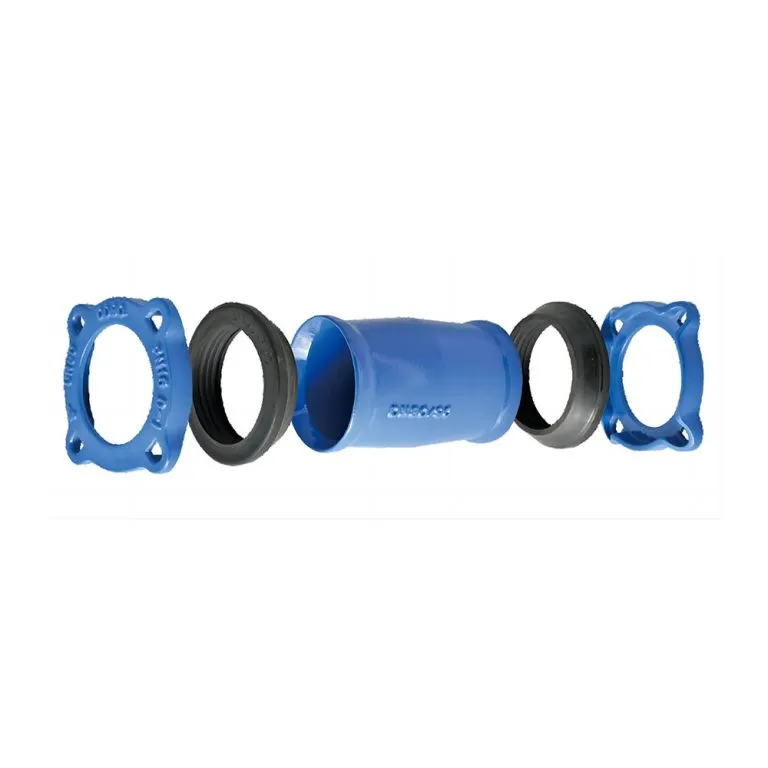

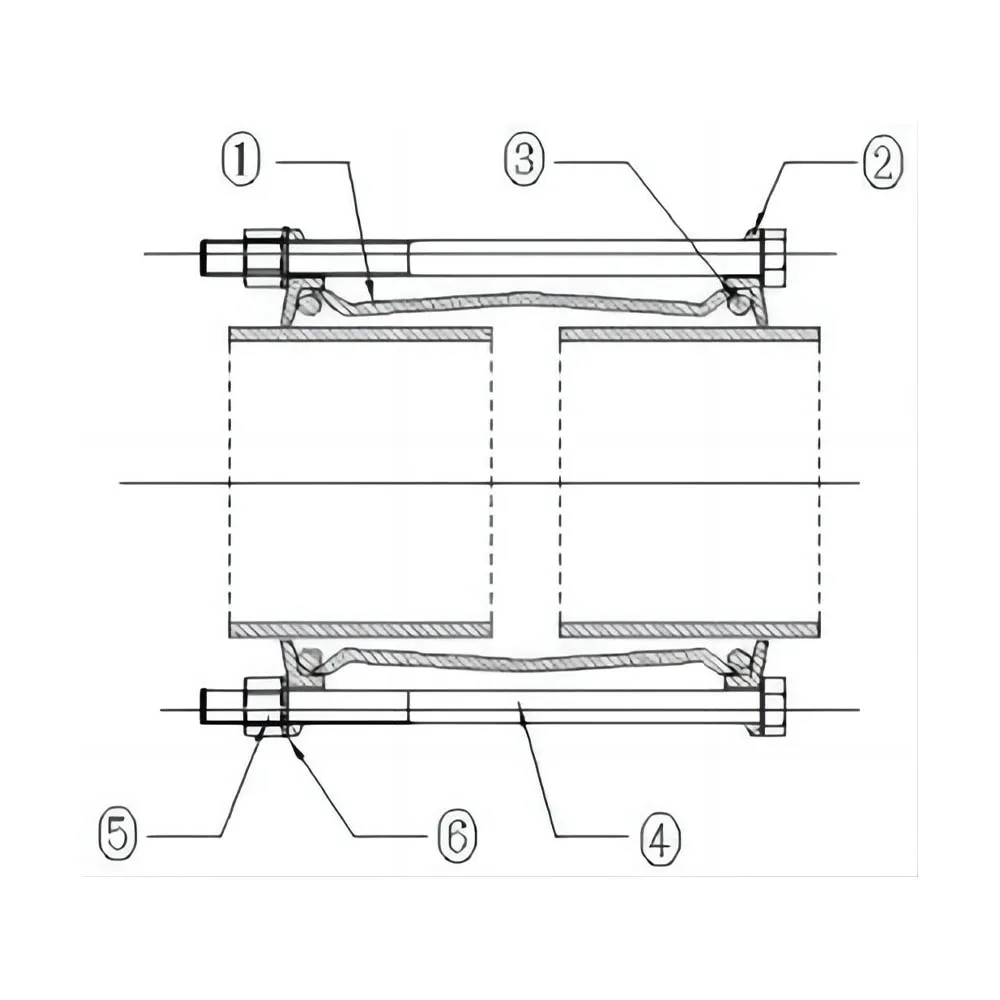

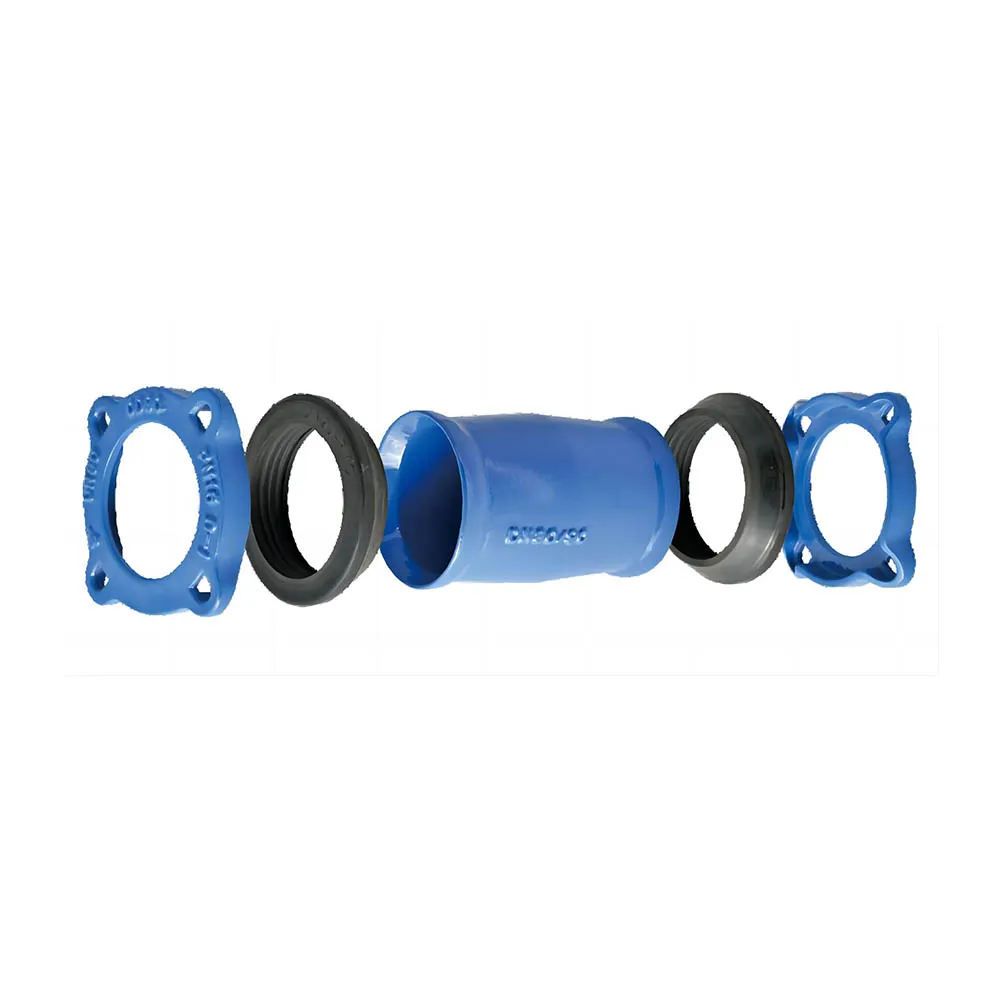

| Part No. | Part Name | Material | Standard |
| 1 | Sleeve | Q235B | ISO630 |
| 2 | Gland Flange | GGG50 | EN1563 |
| 3 | Rubber Gasket | EPDM/SBR/NBR | ISO4633 |
| 4 | Bolts&Nuts | Carbon Steel 4.8/8.8, SS, Dacromet | ISO898 |
| 5 | Finish Layer | Fusion Bond Epoxy etc. | EN14901 |
| Briefs & Features | |
| 1 | Suitable for PVC pipes. |
| 2 | Working pressure PN10/PN16. |
| 3 | Maximum temperature -10°C to+70°C. |
| 4 | Suitable for potable water (WRAS approved), recycled water and sewage. Corrosion resistant structure. |
| 5 | Total angle deviation is +/- 3 degree. |
| Complying Standard | |
| Flange drilling | EN1092-2, EN1092-1, ANSI |
| Coating | EN30677 |
| Test | EN12266-1 |
 |
| OD | A | B | C |
| 40 | 106 | 131 | 97 |
| 50 | 116 | 131 | 97 |
| 63 | 137 | 150 | 116 |
| 75 | 149 | 154 | 116 |
| 90 | 164 | 154 | 116 |
| 110 | 184 | 175 | 137 |
| 125 | 199 | 175 | 137 |
| 140 | 214 | 179 | 137 |
| 160 | 234 | 215 | 177 |
| 180 | 254 | 215 | 177 |
| 200 | 274 | 219 | 177 |
| 220 | 294 | 229 | 177 |
| 225 | 299 | 228 | 177 |
| 250 | 341 | 241 | 185 |
| 280 | 371 | 241 | 185 |
| 315 | 406 | 241 | 185 |
| 400 | 495 | 243 | 181 |
| 500 | 592 | 243 | 181 |
| 630 | 753 | 243 | 181 |
