Restrained Universal Coupling

Product number:

DN50-DN300

Restrained universal coupling represents the latest mechanical coupling technology for connecting a variety diameter pipe to save the installation time, install easily and remove conveniently.

Mechanical locking by means of metal inserts in order to avoid pipes axial movement, independant clamping on both sides.

Restrained universal coupling support different diameter pipes connection with reducer method, on DI, steel, PE/PVC pipes, etc.

Special design is allowable, welcome to contact us.

Chat Now

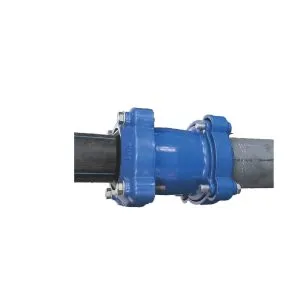

Restrained Universal Coupling

Product number:

DN50-DN300

Restrained universal coupling represents the latest mechanical coupling technology for connecting a variety diameter pipe to save the installation time, install easily and remove conveniently.

Mechanical locking by means of metal inserts in order to avoid pipes axial movement, independant clamping on both sides.

Restrained universal coupling support different diameter pipes connection with reducer method, on DI, steel, PE/PVC pipes, etc.

Special design is allowable, welcome to contact us.

Chat Now

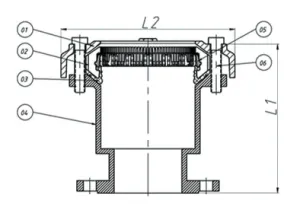

Part No.	Part Name	Material	Standard
1	Sleeve	EN GJS450-12	EN1563
2	Rubber Gasket	EPDM/SBR/NBR	ISO4633
3	Gland Flange	GGG50	EN1563
4	Bolts&Nuts	Carbon Steel 4.8/8.8, SS, Dacromet	ISO898
5	Finish Layer	Fusion Bond Epoxy etc.	EN14901
6	Locking tooth	Q235B	EN10025

Briefs & Features
1	Connection for pipes in material ductile iron, steel, PVC, PE, Stainless steel, AC etc.
2	Working pressure PN10/PN16.
3	Maximum temperature -10°C to+70°C.
4	Suitable for potable water (WRAS approved), recycled water and sewage. Corrosion resistant structure.

Complying Standard
Flange drilling	EN1092-2, EN1092-1, ANSI
Coating	EN30677
Test	EN12266-1

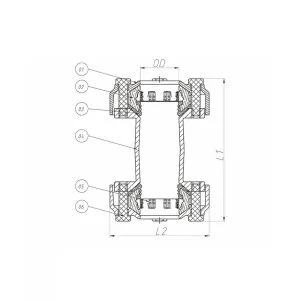

DN	OD	L1	L2
DN50	46-70	170	187
DN65	70-95	195	212
DN80	88-123	215	240
DN100	108-143	225	260
DN125	133-168	225	285
DN150	159-194	225	311
DN200	200-235	245	370
DN250	250-285	265	420
DN300	315-350	275	485

1. There is 5-10mm telescopic adjustment between socket and flange end.

The pipe can be cut into different lengths, and pipe connection is changed from a socket pipe to a flange connecting pipe.

Install easily and quickly. Using only one torque wrench to tighten high strength bolted connection.

2. Wide range of different pipe OD with +/- 6° deviation.

It can be used in the large bending radius pipeline and allowable for the normal movement of the pipe such as ground subsidence.

3. The simplicity and versatility of this product make them suitable for many applications including pumping stations, water purification plants, sewage treatment plants, plat rooms, instrument rooms, power generation equipment, gas stations and all pipelines.

4. Product design and manufacture according to BS, EN, ISO9001:2008 system and surface anti-corrosion material through the most stringent WRAS certification, so it can be used for drinking water.

5. We provide EPDM, NBR, SBR rubber pad and carbon steel/stainless steel bolts for long term rust protection.

Because this product can be connected to different pipe diameter pipeline, it can reduce your investment in the inventory.
