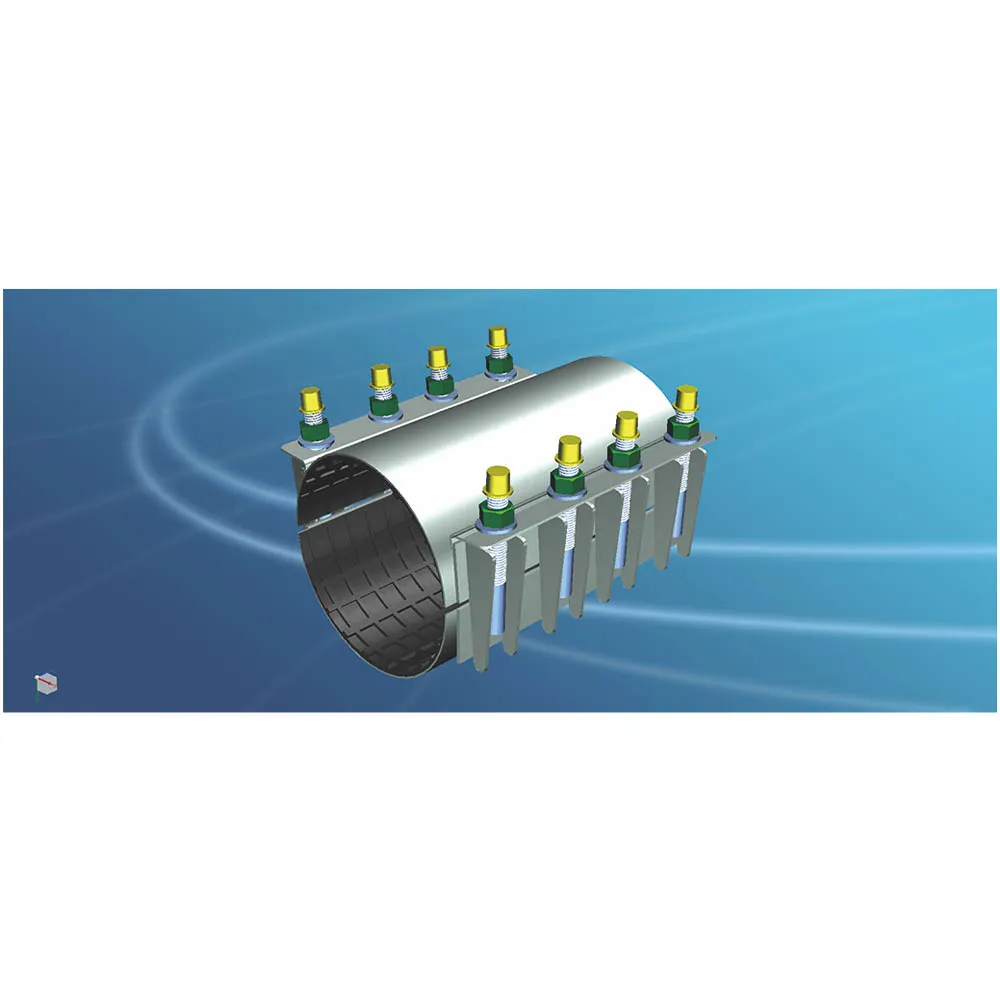

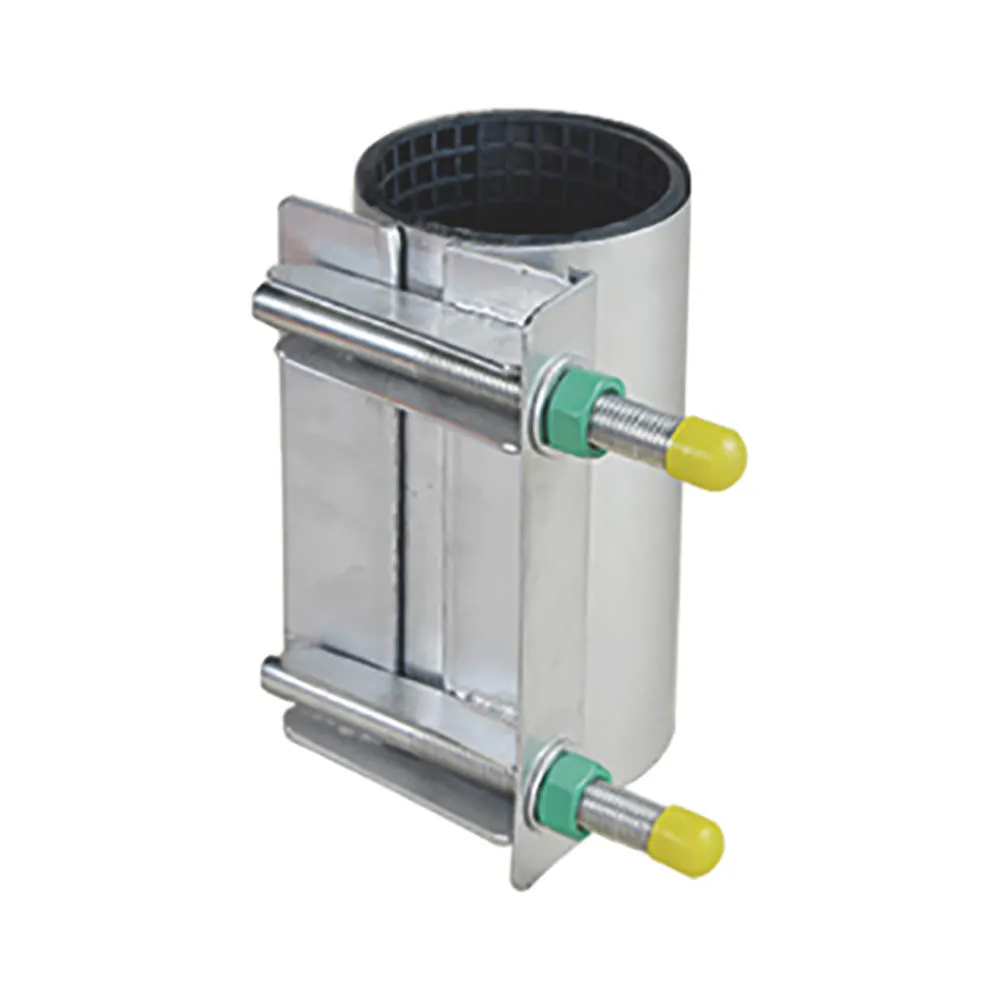

Stainless Steel Band Repair Clamp CR-1

Product number:

59-366mm

The stainless steel band repair clamp provides a quick and economic way to repair damages of different pipes, such as leakage, perforation, and longitudinal cracks. It can be installed on running pipelines.

Special design is allowable, welcome to contact us.

Stainless Steel Band Repair Clamp CR-1

Product number:

59-366mm

The stainless steel band repair clamp provides a quick and economic way to repair damages of different pipes, such as leakage, perforation, and longitudinal cracks. It can be installed on running pipelines.

Special design is allowable, welcome to contact us.

Part No.Part NameMaterialStandard
1Steel ShellSS304AS4181-2013
2Rubber SheetEPDMISO4633
3/4/5FastenerSS304AS4181-2013
6Gusset PlateSS304AS4181-2013
7Guide PlateSS304AS4181-2013
8Support PlateSS304AS4181-2013
9ClawSS304/Cast IronAS4181-2013/EN1563



Briefs & Features
1Suitable for maintenance of pipeline such as water, sewage, gas/natural gas supply, electricity, industrial production.
2Working pressure PN10/PN16.
3Maximum temperature -10°C to+70°C.
4Suitable for potable water (WRAS approved), recycled water and sewage. Corrosion resistant structure.
CR/ZR-1PNCR/ZR-2PNCR/ZR-3PNCR/ZR-4PNW
59-6716150-600
65-7316150-600
69-7616150-600
75-8316150-600
86-941688-10816150-600
108-11816108-12816150-2000
113-1211613-13316150-2000
121-13116120-14116150-2000
126-13616168-18816150-2000
132-14216174-19416150-2000
145-15516219-23916150-2000
151-16116228-24916150-2000
159-17016238-25816150-2000
166-17716258-27816150-2000
170-18016273-29310150-2000
174-18416282-30210150-2000
179-18916295-31510150-2000
189-19916324-34410150-2000
218-22816335-35610150-2000
222-23316347-36710150-2000
229-23916357-37610150-2000
236-24616365-38410150-2000
248-25816383-40210150-2000
250-26010404-42310150-2000
252-26310421-44010150-2000
261-27110436-45510150-2000
271-28110453-47210150-2000
280-29110469-48810150-2000
288-29810488-50710150-2000
298-30910505-52510150-2000
300-31010526-5458150-2000
304-31410547-5668150-2000
321-33110562-5818630-6608150-2000
333-34310582-6018670-7008150-2000
340-35110630-6508720-7508150-2000
348-35810670-6908770-8006150-2000
356-36610720-7408820-8506150-2000
870-9006150-2000
920-9506920-9606150-2000
1020-10606150-2000
1070-11106150-2000
1120-11606150-2000
1220-12606150-2000
1.The leakage can be repaired without special treatment on the surface of the pipeline. Thin wall and thick wall pipes can be applied. The installation is simple and the construction cost is greatly reduced. 2. The customer has some special requirements for the product that can also be designed and manufactured. 3.Product design and manufacture in accordance with ISO9001: 2008 system. we use SS304 material as the main body of product, surface corrosion materials is authenticated by WRAS certification, making it suitable for drinking water. 4.We provide gaskets of EPDM, NBR, and SBR, bolts and nuts of carbon steel and stainless steel, etc., long-term anti-rust protection. For this product we provide excellent protection from transportation, warehousing, anti-corrosion at site. Because this product can be connected to different pipe diameter pipeline, it can reduce your investment in the inventory.
1. Check whether some of parts is missing in transport. Pay attention to the location of the leakage point, it is best to avoid sealing at the overlap of the rubber plate 2. Check the diameter and scope of the pipe and check the type of models, to make sure use the right products. And thoroughly clean the surface of the pipe that will use the clamp. Wrap the rubber sheet evenly around the pipe. 3. Remove the nuts from the bolts, but do not remove them and clip the clamps onto the pipe. The center of the clamp is aligned with the location of the pipe to be repaired, and the appropriate gasket lubricant is applied to the roughened pipe to ensure that the product is well sealed. Insert the bolt into the guide plate, insert the plate into the bolt and seize the support plate. 4. Make sure that the gasket is not folded and tiled on the pipe surface and tighten the bolts to ensure that the cracks and holes in the pipe are repaired by the worker. Screw in gasket, nut and cross lock nut. 5. Tighten all nuts evenly to each 20 lb / ft of torque increment, at first the center of the tightening nut, and other parts of the nuts, tighten all bolts after several guarantee torque to meet the requirements. In order to achieve better sealing effect, wait ten minutes later, please tighten the bolts again.
