Stainless Steel Repair Clamp Connector FCD

Product number:

OD21.7-OD377

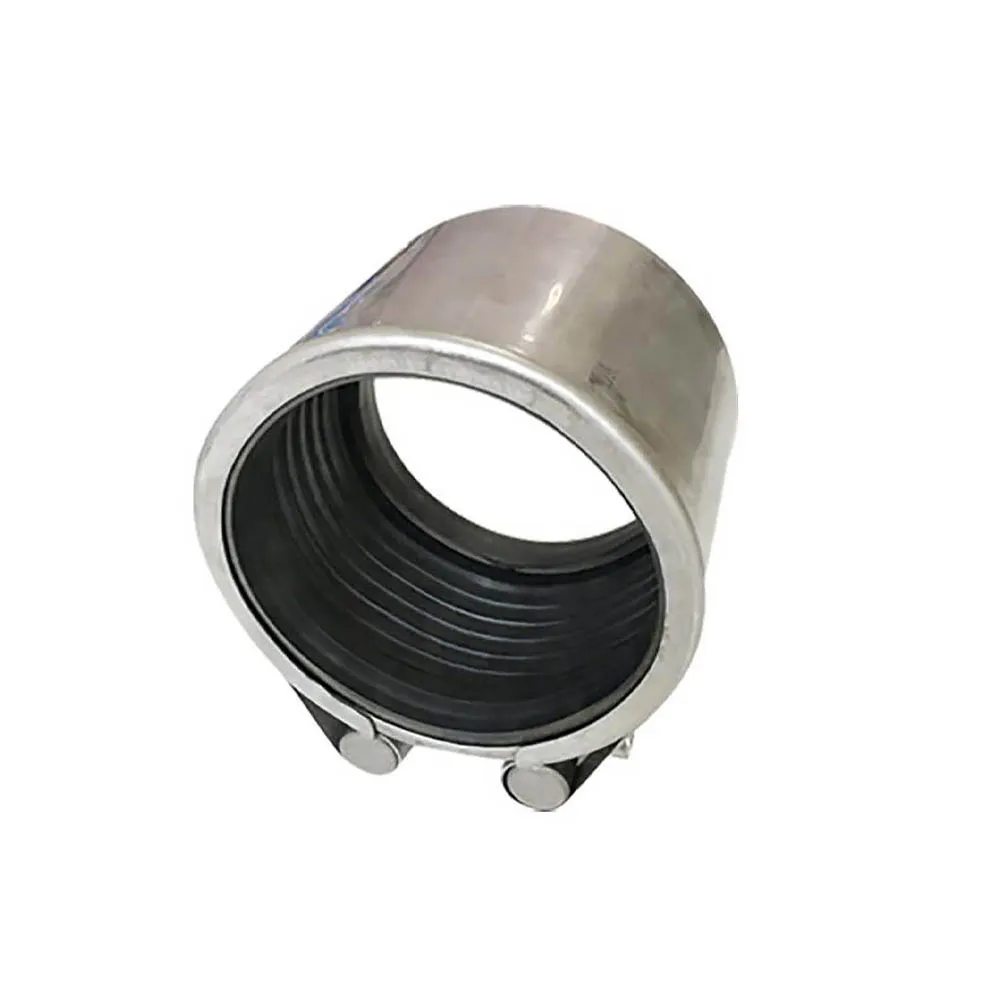

FCD Stainless Steel Repair Clamp can be used for quick connection of metal, cement, asbestos and other materials. Compared with the traditional flange connection, it has lower cost, convenient installation, high construction efficiency and can be operated without special tools.

Special design is allowable, welcome to contact us.

Chat Now

Stainless Steel Repair Clamp Connector FCD

Product number:

OD21.7-OD377

Special design is allowable, welcome to contact us.

Chat Now

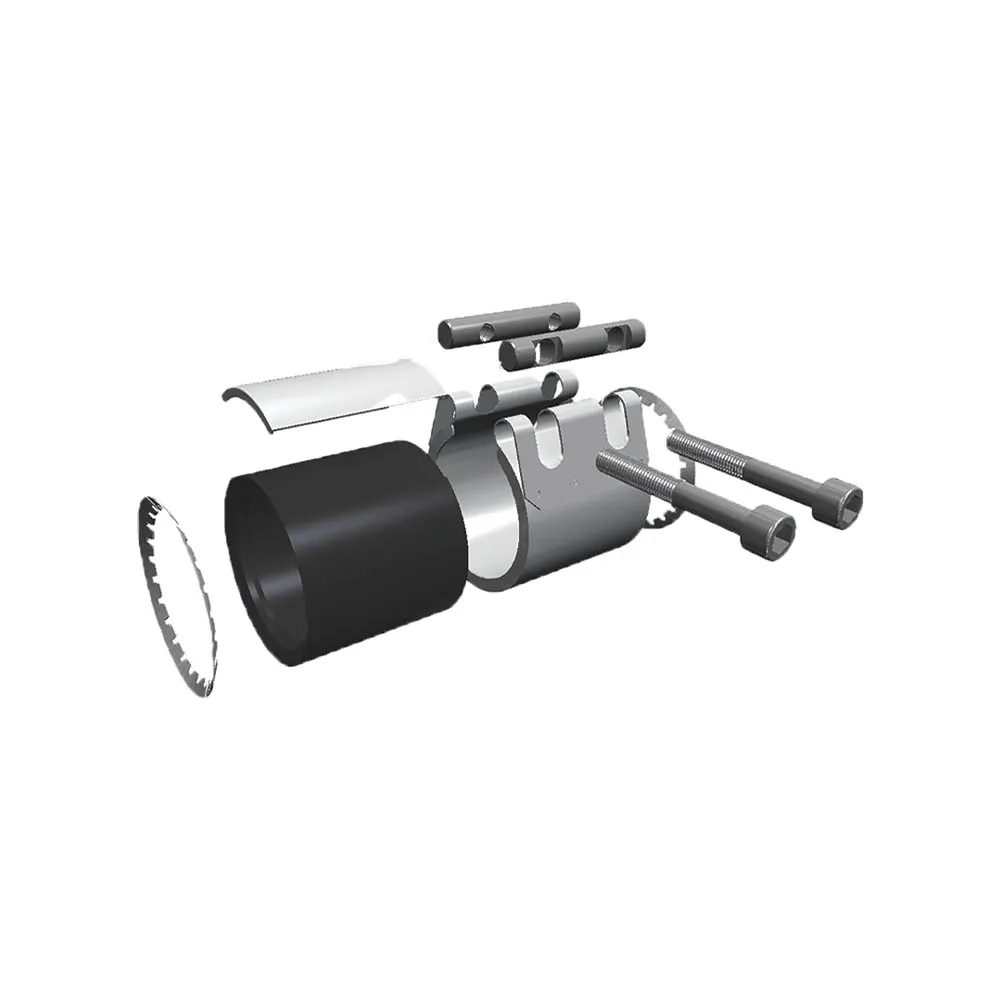

Part No.	Part Name	Material	Standard
1	Backplate	SS304	AS4181-2013
2、3	Bolts&Nuts	SS304	AS4181-2013
4	Rubber Sleeve	EPDM	ISO4633
5	Shell Steel Plate	SS304	AS4181-2013
6	Bolts	SS304	AS4181-2013

Briefs & Features
1	Suitable for PE and other non-metallic pipes（FCTR), metal, cement, asbestos and other materials.(FCD), wide range of pipe diameters.
2	Working pressure PN10/PN16.
3	Maximum temperature -10°C to+70°C.
4	Suitable for potable water (WRAS approved), recycled water and sewage. Corrosion resistant structure.

（mm）	ODmin-ODmax(mm)	WP(bar）	L1（mm）	L2（mm）	D （mm）	Bolts(M)	Nm
21.7	21-23	16	57	—	35	6	15
25	24.5-25.5	16	57	—	50	6	15
27.2	26-28	16	57	—	50	6	15
32	31.5-32.5	16	57	—	55	6	15
34	33-35	16	57	—	55	6	15
40	39.5-41.5	16	57	—	55	6	15
42	42-44	16	57	—	65	6	15
44.5	44-45.1	16	57	—	65	6	15
48.6	47-49	16	57	100	70	6	15
54	53.3-54.6	16	57	100	70	8	30
57	56.3-57.7	16	57	100	80	8	30
60.3	59-62	16	80	139	85	8	30
63	62.2-63.9	16	80	139	85	8	30
76.1	75-78	16	80	139	100	8	30
79.9	78.8-80.8	16	80	139	100	8	30
88.9	88-92	16	107	203	110	10	50
108	106-110	16	107	203	130	10	50
110	108.9-111.2	16	107	203	130	10	50
114.3	112-116	16	107	203	135	10	50
118	116.6-119.2	16	107	203	140	10	50
125	123.6-126.5	16	107	203	150	10	50
133	131.5-134.4	16	107	203	160	10	50
140	137-143	16	116	203	165	12	80
159	157-161	16	116	203	185	12	80
165.2	163.3-166.7	16	116	203	190	12	80
168	166-170	16	116	203	195	12	80
170	168.2-171.9	16	116	203	195	12	80
200	198.2-201.5	16	155	255	240	14	100
219	217-221	10	155	255	250	14	100
250	250-254	10	155	255	285	14	100
273	271-275	10	155	255	305	14	100
315	313-317	10	155	255	340	14	100
325	323-327	10	155	255	360	14	100
355.6	354-358	10	155	255	385	14	100
377	375-379	10	155	255	410	14	100

1.FCTR Stainless Steel Repair Clamps is ring gear type pipe connector, which has strong sealing performance and tensile strength. It is used to connect PE and other non-metallic pipes. Its ring gear design can play a good role in anti-seismic, anti impact and noise reduction in pipe connection. 2. The simplicity and versatility of this product makes the product very easy to install and the entire line can be installed in a stressful manner. It eliminates the need to shut down the entire line during the product installation, can bring great convenience to customers. 3. Product design and manufacture according to BS, EN, ISO9001:2008 system and surface anti-corrosion material through the most stringent WRAS certification, so it can be used for drinking water. 4. We provide EPDM, SBR, NBR rubber pad and carbon steel/stainless steel bolts for long term rust protection.

1. The main function of this product is to open a branch pipe or install the faucet or water meter in any part of the pipeline temporarily after the completion of the installation of the whole pipeline and already running. Quick removal of the product, the installation of only one wrench, torque wrench to tighten high-strength steel or stainless steel connection bolt is one of the most important features of the series. 2. This product is specially designed for connecting DI pipes. The connect range is from DN50-DN315.The customer has some special requirements for the product that can also be designed and manufactured to meet customer requirements. 3. The simplicity and versatility of this product makes the product very easy to install and the entire line can be installed in a stressful manner. It eliminates the need to shut down the entire line during the entire product installation without the interruption for pipeline, can bring great convenience to customers. 4. Product design and manufacture according to BS, EN, ISO, 9001:2008 system and surface anti-corrosion material through the most stringent WRAS certification, so it can be used for drinking water. 5. We provide EPDM, SBR, SBR rubber pad and carbon steel/stainless steel bolts for long term rust protection.

1.Check the saddle for damage, if any accessories was lost during transport. 2. Check the diameter and range of the pipe And check the type of model of the saddle, to make sure you use the right products. 3.Thoroughly clean the pipe surface that will use the pipe clip. Suitable gasket lubricant for roughened pipes to ensure that the product is well sealed. 4.Loosen the saddle bolt and bolt to separate the two part of products. 5. Positioning saddle on the pipe, thread outlet is in the correct position. 6.The next two parts of saddle should be alignment bolts holes and tighten the bolts to ensure that the gasket is parallel with the external. 7. Tighten the bolt and tighten the bolt with a wrench as required. The bolt is evenly exchanged with a torque of 15-20 pounds / feet each time.
