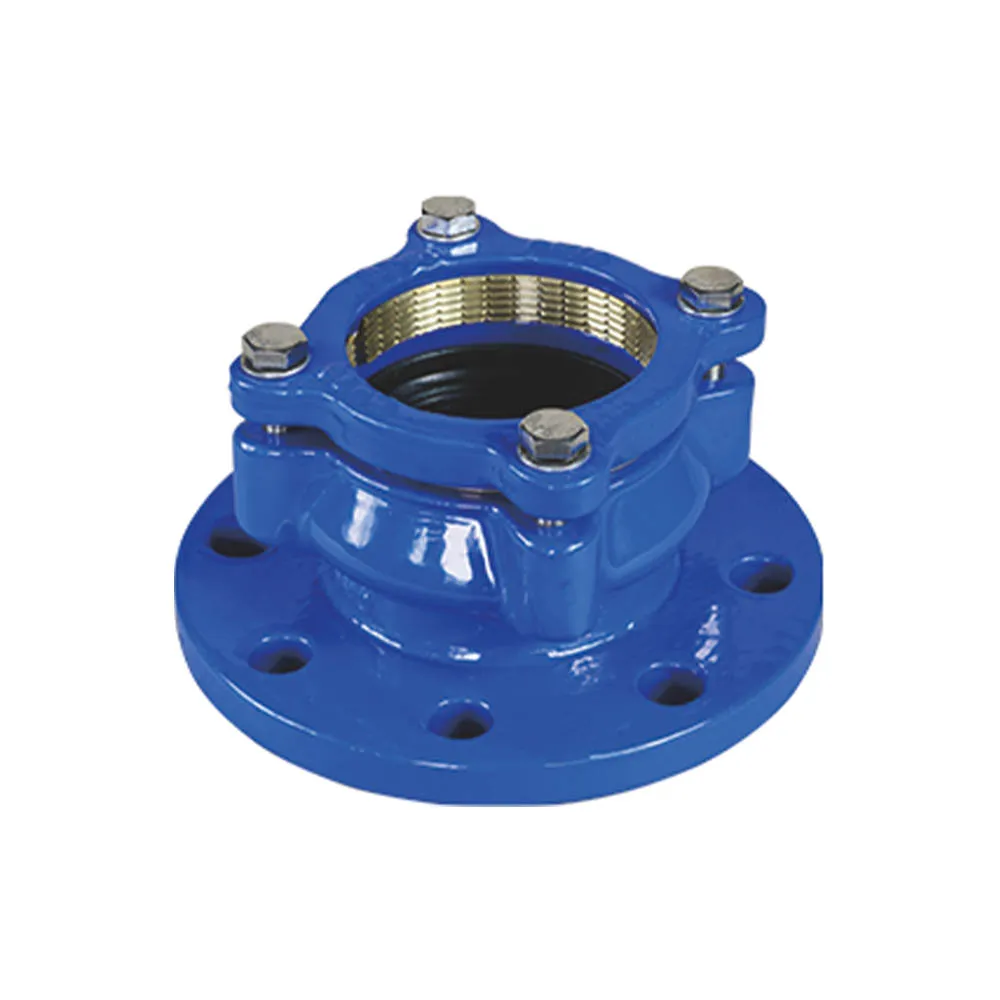

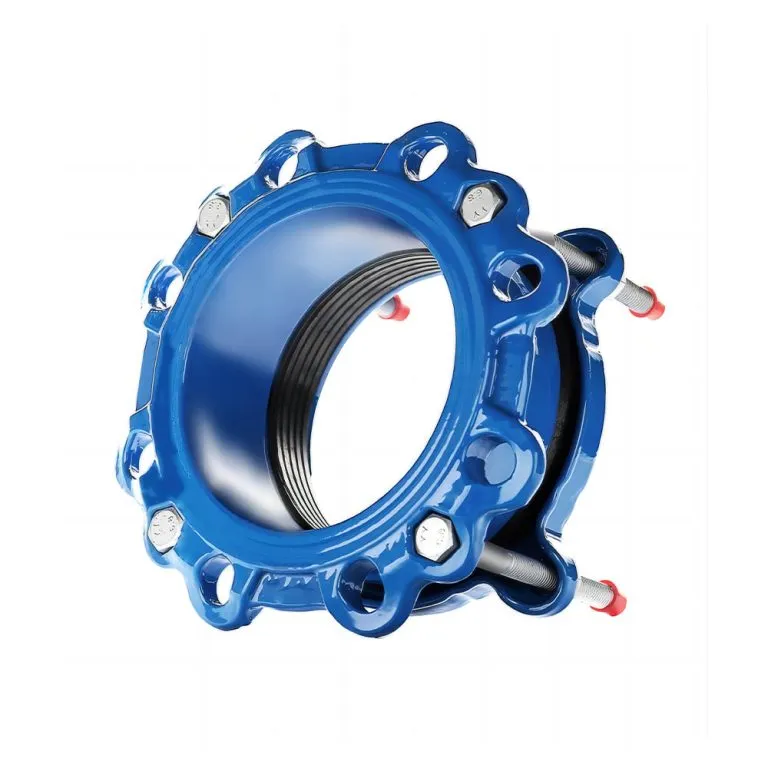

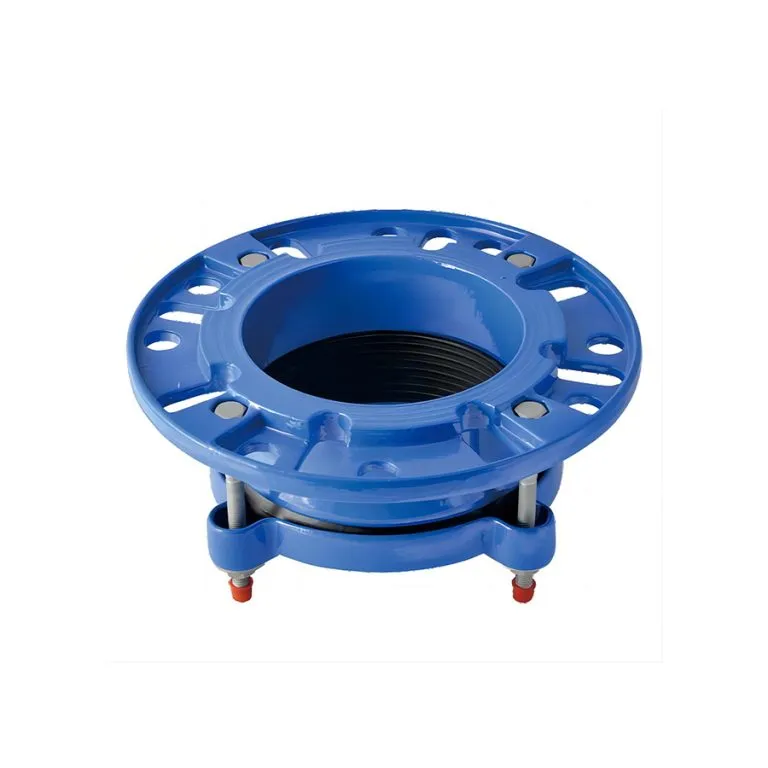

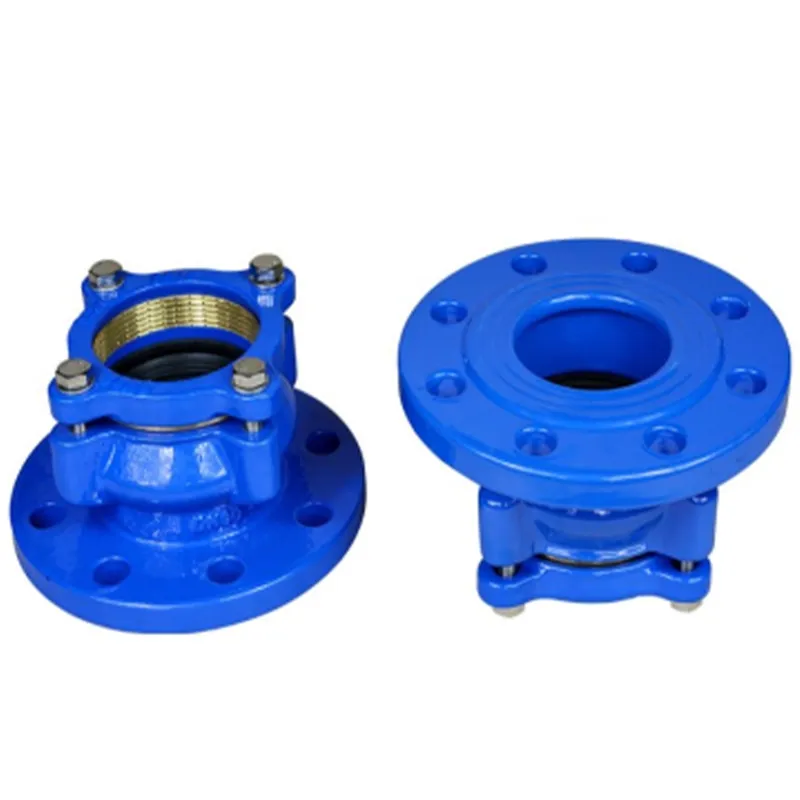

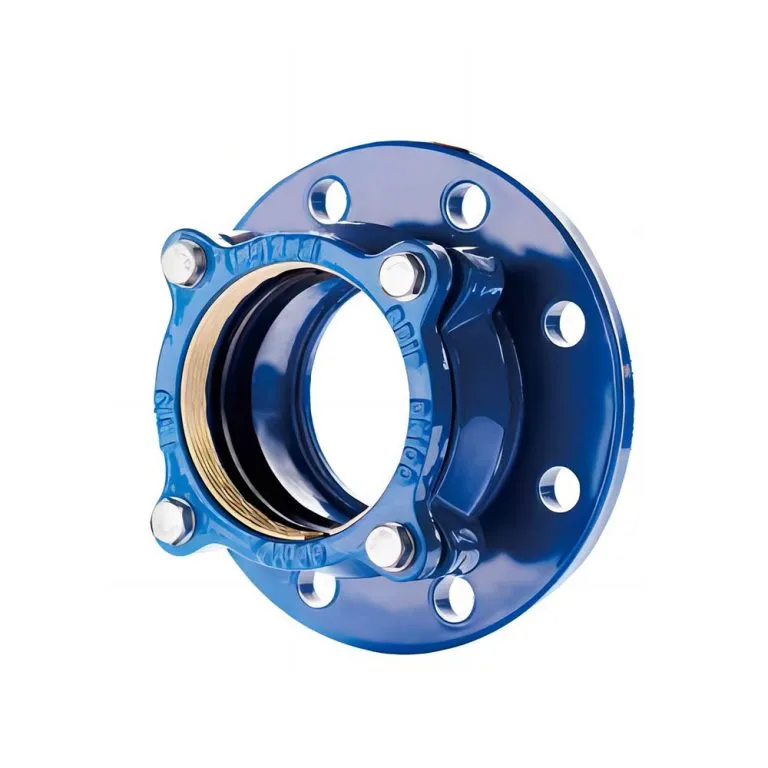

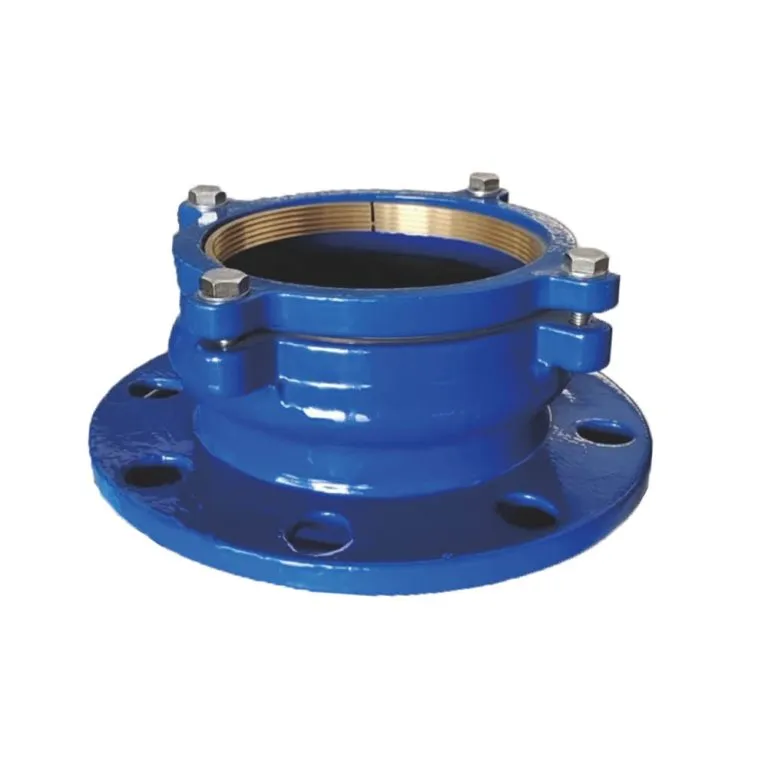

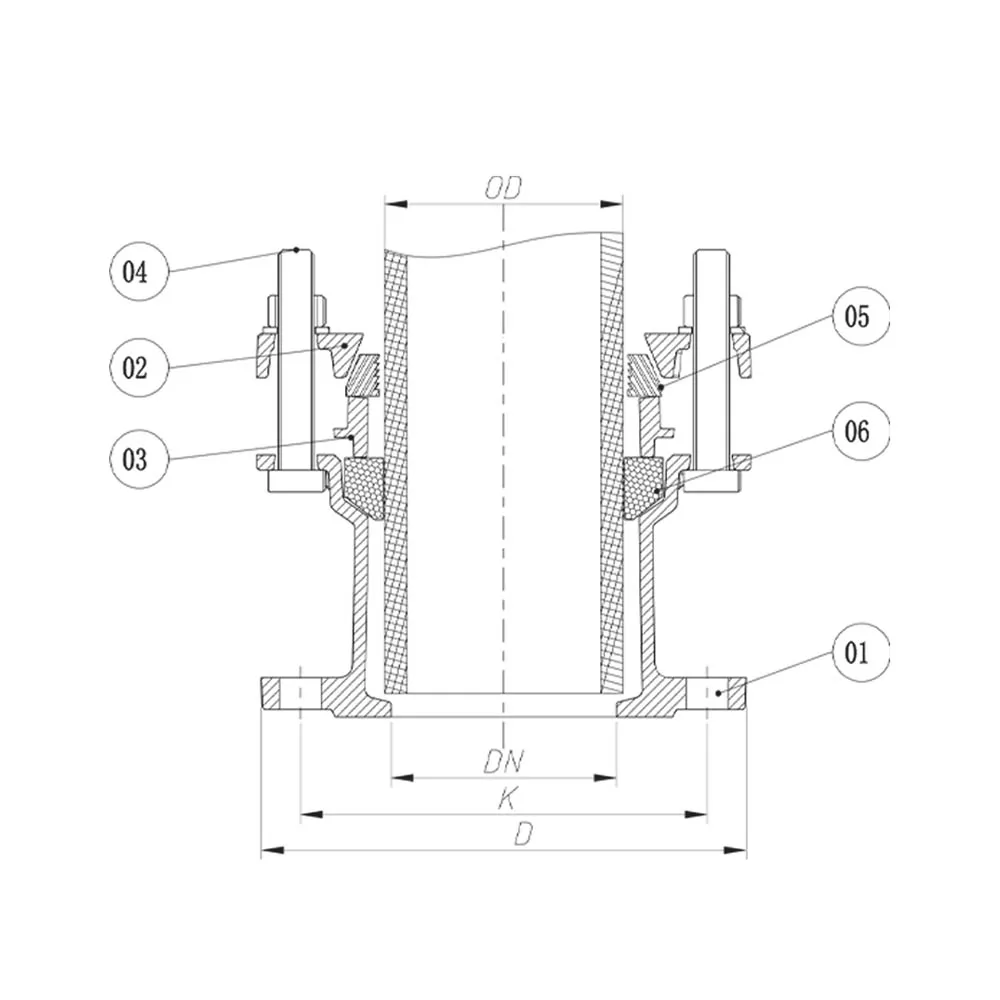

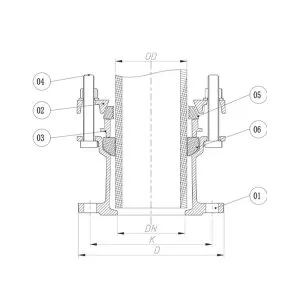

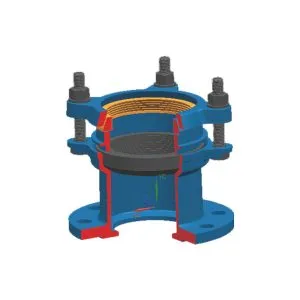

| Part No. | Part Name | Material | Standard |
| 1 | Flange Pipe | GGG50 | EN1563 |
| 2 | Rubber Gasket | EPDM/SBR/NBR | ISO4633 |
| 3 | Gland Flange | GGG50 | EN1563 |
| 4 | Bolts&Nuts | Carbon Steel 6.8/8.8, SS, Dacromet | ISO898 |
| 5 | Finish Layer | Fusion Bond Epoxy etc. | EN14901 |
| Briefs & Features | |
| 1 | Suitable for steel, iron, plastic pipes, wide range of pipe diameters. |
| 2 | Working pressure PN10/PN16. |
| 3 | Maximum temperature -10°C to+70°C. |
| 4 | Suitable for potable water (WRAS approved), neutral liquids and sewage. Corrosion resistant structure. |
| 5 | Total angle deviation is +/- 6 degree. |
| Complying Standard | |
| Flange drilling | EN1092-2, EN1092-1, ANSI |
| Coating | EN30677 |
| Test | EN12266-1 |
 |
 |
| DN | OD | D | K | ||
| DI PIPE | STEEL PIPE | PVC/PE | |||
| 50 | 66 | 60.3 | 63 | 165 | 125 |
| 65 | 82 | 76.1 | 75 | 185 | 145 |
| 80 | 98 | 88.9 | 90 | 200 | 160 |
| 100 | 118 | 114.3 | 110 | 220 | 180 |
| 125 | 144 | 139.7 | 140 | 250 | 210 |
| 150 | 170 | 168.3 | 160 | 285 | 240 |
| 200 | 222 | 219.1 | 200 | 340 | 295 |
| 250 | 274 | 273 | 250 | 400 | 355 |
| 300 | 326 | 323.9 | 315 | 455 | 410 |
| 350 | 378 | 355.6 | 355 | 520 | 470 |
| 400 | 429 | 406.4 | 400 | 580 | 525 |
| 450 | 480 | 457 | 450 | 640 | 585 |
| 500 | 532 | 508 | 500 | 715 | 650 |
| 600 | 635 | 610 | 630 | 840 | 770 |
| 700 | 738 | 711 | 910 | 840 | |
| 800 | 842 | 813 | 1025 | 950 | |
| 900 | 945 | 914 | 1125 | 1050 | |
| 1000 | 1048 | 1016 | 1255 | 1170 | |
