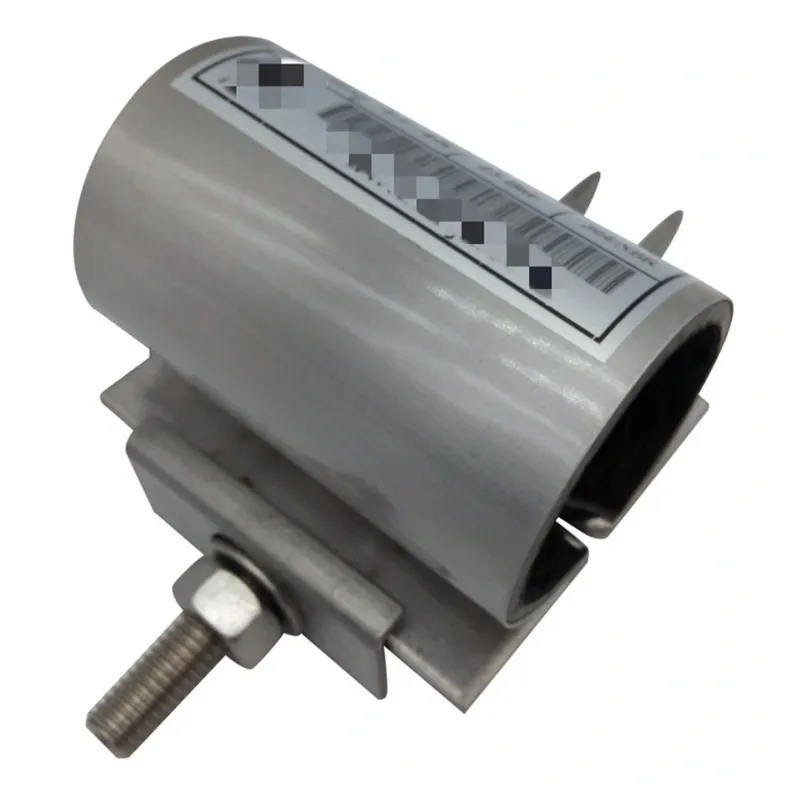

Mini Repair Clamp Semi Circle

Product number:

DN15-DN125

Semi/Full Circle Mini Repair Clamp provides quick repair of any pipe breakage and leakage under pressure or no pressure.

Special design is allowable, welcome to contact us.

Chat Now

Mini Repair Clamp Semi Circle

Product number:

DN15-DN125

Semi/Full Circle Mini Repair Clamp provides quick repair of any pipe breakage and leakage under pressure or no pressure.

Special design is allowable, welcome to contact us.

Chat Now

Part No.	Part Name	Material	Standard
1	Steel Plate	SS304	DIN17224
2	Rubber Gasket	NBR	EN681-1
3	Body	Ductile Iron	DIN10100-80
4	Bolt	Galvanized steel 8.8 grade	DIN103-7
5	Washer	Galvanized steel	DIN17224
6	Nut	Galvanized steel	DIN17224

Briefs & Features
1	Suitable for maintenance of pipeline such as water, sewage, gas/natural gas supply, electricity, industrial production.
2	Working pressure PN10/PN16.
3	Maximum temperature -10°C to+70°C.
4	Suitable for potable water (WRAS approved), recycled water and sewage. Corrosion resistant structure.

Lenght of screw(bolt)=M10×90mm
Gasket thickness=3.5mm
Band thickess=0.5mm

DN	Inch	Scope	Pressure	Closing Torque
15	1/2	19-23	1.6Mpa	1.6Mpa
20	3/4	24-28	1.6Mpa	1.6Mpa
25	1	29-34	1.6Mpa	1.6Mpa
32	11/4	38-42	1.6Mpa	1.6Mpa
40	11/2	44-48	1.6Mpa	1.6Mpa
50	2	55-61	1.6Mpa	1.6Mpa
65	21/2	69-73/71-76/76-82	1.6Mpa	1.6Mpa
80	3	82-87/87-93/94-100/99-104	1.6Mpa	1.6Mpa
100	4	105-111/112-118/120-126	1.6Mpa	1.6Mpa
125	5	126-131/132-138/140-146	1.6Mpa	1.6Mpa

1. The main function of this product is to open a branch pipe or install the faucet or water meter in any part of the pipeline temporarily after the completion of the installation of the whole pipeline and already running. Quick removal of the product, the installation of only one wrench, torque wrench to tighten high-strength steel or stainless steel connection bolt is one of the most important features of the series. 2. This product is specially designed for connecting DI pipes. The connect range is from DN50-DN315.The customer has some special requirements for the product that can also be designed and manufactured to meet customer requirements. 3. The simplicity and versatility of this product makes the product very easy to install and the entire line can be installed in a stressful manner. It eliminates the need to shut down the entire line during the entire product installation without the interruption for pipeline, can bring great convenience to customers. 4. Product design and manufacture according to BS, EN, ISO, 9001:2008 system and surface anti-corrosion material through the most stringent WRAS certification, so it can be used for drinking water. 5. We provide EPDM, SBR, SBR rubber pad and carbon steel/stainless steel bolts for long term rust protection.

1.Check the saddle for damage, if any accessories was lost during transport. 2. Check the diameter and range of the pipe And check the type of model of the saddle, to make sure you use the right products. 3.Thoroughly clean the pipe surface that will use the pipe clip. Suitable gasket lubricant for roughened pipes to ensure that the product is well sealed. 4.Loosen the saddle bolt and bolt to separate the two part of products. 5. Positioning saddle on the pipe, thread outlet is in the correct position. 6.The next two parts of saddle should be alignment bolts holes and tighten the bolts to ensure that the gasket is parallel with the external. 7. Tighten the bolt and tighten the bolt with a wrench as required. The bolt is evenly exchanged with a torque of 15-20 pounds / feet each time.
